Description

Key attributes

Model Number

20~30mesh

Alloy Specification

YG8

Place of Origin

Hunan, China

Brand Name

Zhuzhou Jinzhou

Particle

1.0~1.2 um

Product name

Crushed Tungsten Carbide Grits

Material

WC+CO

Usage

Welding and Thermal Spraying

MOQ

5kgs

Color

Black

Advantage

No impurities, Good welding effect

Hardness

89~90HRA

Keywords

Crushed Tungsten Carbide Girts, Carbide Particles, Carbide Pellets

DENSITY

14.6~14.8g/cm3

Shape

Polyhedron

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Report abuse

Warning/Disclaimer

Export Control ReminderView more

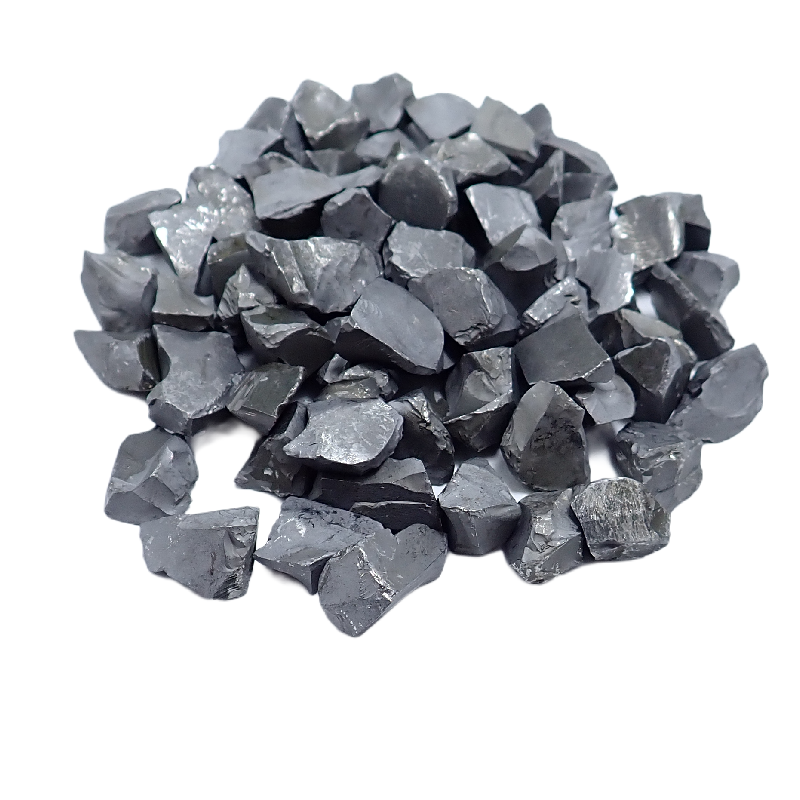

Crushed Tungsten Carbide Grits

Zhuzhou Jinzhou's Tungsten Carbide Particle is using the tungsten carbide anvil as raw material, It can crush all kinds of particle sizes. With perfect properties of high hardness, excellent corrosion, abrasion resistance, high pressure and temperature resistance.

The Crushed tungsten carbide grits are widely used in surfacing and spraying of metal surfaces, such as
petroleum, mining, coal mining, geology, etc., for some severely worn or cut workpieces.

Specifications of crushed tungsten carbide grits:
Available stock sizes of tungsten carbide grits: 1-12 mesh/12-20 mesh/20-30 mesh/30-40 mesh/40-60 mesh/60-80 mesh
Note: The size of tungsten carbide grits can be customized according to customer’s special requirements.

Advantages:1. High Hardness and Wear Resistance: YG8 is known for its high hardness (HRA 89-91) and excellent wear resistance, even after crushing. This makes the grits ideal for applications requiring abrasion resistance, such as surface conditioning, polishing, or as an abrasive medium.2. Good Toughness: The 8% cobalt binder in YG8 enhances toughness compared to higher-carbide, lower-cobalt grades (e.g., YG6). Crushed YG8 grits are less prone to chipping or breaking under impact, ensuring longer service life in dynamic or high-stress uses.3. Uniform Particle Size and Shape: Crushed grits typically have irregular, angular shapes with consistent particle sizes (when graded). This uniformity ensures even material removal or coating in applications like abrasive blasting, where consistent performance is critical.4. Chemical Stability: Tungsten carbide is resistant to corrosion, oxidation, and chemical reactions with most acids, alkalis, and organic substances. This makes crushed YG8 grits suitable for use in harsh chemical environments.5. Cost-Effectiveness: As recycled or crushed material, YG8 grits often offer a more economical alternative to virgin tungsten carbide products while retaining most of the original grade’s performance, making them practical for bulk abrasive applications.6. Versatility: Their balance of hardness and toughness allows use in diverse scenarios, from metal surface preparation (descaling, deburring) to manufacturing abrasive tools (grinding wheels, sandpapers) or as a reinforcement in composites.

Black Crushed Tungsten Carbide Particles	1/8" * 1/16''(1.6~3.2 mm)
		3/16" * 1/8" (3.2~4.8 mm)
		1/4" * 3/16"" (4.8~6.4 mm)
		5/16" * 1/4" (6.4~8.0 mm)
		3/8" * 5/16" (8.0~9.5 mm)
		1/2" * 3/8" (9.5~12.7 mm)

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S (MPa)	Performance&Application Recommended	ISO
YG3A	15.1	94.0	1700	Suitable for finishing of cast iron and nonferrous metal.	K01～K05
YG3X	15.2	92.0	1800	Suitable for finishing of cast iron and nonferrous metal.	K01～K05
YG6A	14.85	92.5	2200	Suitable for the semi-finishing cast iron and nonferrous metals and also for the machining of manganese steel and hardened steel.	K10
YG6X	14.9	91.5	2300		K10
YG6	14.95	90.5	2400	Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.	K15
YG8	14.7	89.8	2800			K20
YW1	13.1	91.6	1600	Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel.	M10
YW2	13.0	90.6	1800	The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.	M20
YT15	11.4	91.5	1600	Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed.	P10
YT14	11.6	90.8	1700	Suitable for the finishing and semi-finishing of steel and cast steel.	P20
YT5	12.9	90.5	2200	Suitable for the heavy cutting of steel and cast steel with a big feed rate ata medium and low speed under unfavorable working conditions.	P30

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer. Our factory located in Zhuzhou City, Hunan, China. Welcome to visit our factory.

Q2: Can you provide free samples?
A2: For stocked items, we could provide few free samples for testing, but the extra shipping costs need to be charged, you can also use your own courier account if have. Samples will be sent to you by courier within 3 working days.
For no stock items, we have the MOQ requirement when ordering.

Q3: What is your MOQ?
A3: Different item has different MOQ, Pls consult with sales for the details.

Q4: What is terms of payment?
A4: Normally, When Payment value <=USD1000, we require 100% T/T prepaid before production. Otherwise, 50% T/T in advance, pay off the balance before shipping.

Q5: Do you offer OEM and ODM?
A5: Yes, we have rich experience in OEM and ODM. We can engrave logo and specifications on the products. In addition, we can also do custom printing on the packaging plastic box.

Q6: How to control the products quality?
A6: All products will be 100% tested before delivery, we will check the appearance, dimensions and performance to guarantee qualified products.

Q7:How to contact us?
A7: You can contact me by E-mail, Trademanager, Mobile, Whatsapp and so on.
