Unground Alloy Ball 2~3mm YG6/YG8 Sintered Passivated Cemented Carbide Pellet Blank with Belt Tungsten Carbide Grinding Ball

No.1601599937629

下载

查看所有下载

Description

Key attributes

Model Number

2mm

Alloy Specification

YG6

Place of Origin

Hunan, China

Brand Name

ZZJZ

Particle

0.8~1.0 um

Product name

2mm Cemented Tungsten Carbide Balls

Material

Tungsten Carbide

Application

Precision Bearing Wear Parts

Size

Customer's Request, 0.4~60mm

MOQ

10kg

DENSITY

14.5~14.9g/cm3

Surface Treatment

Unground or Ground and Polished

T.R.S

2400MPa

Hardness

90~91HRA

Certificate

ISO 9001:2015

Packaging and delivery

Selling Units

Single item

Single package size

20X17X16 cm

Single gross weight

100.000 kg

Product descriptions from the supplier

Report abuse

Warning/Disclaimer

Export Control ReminderView more

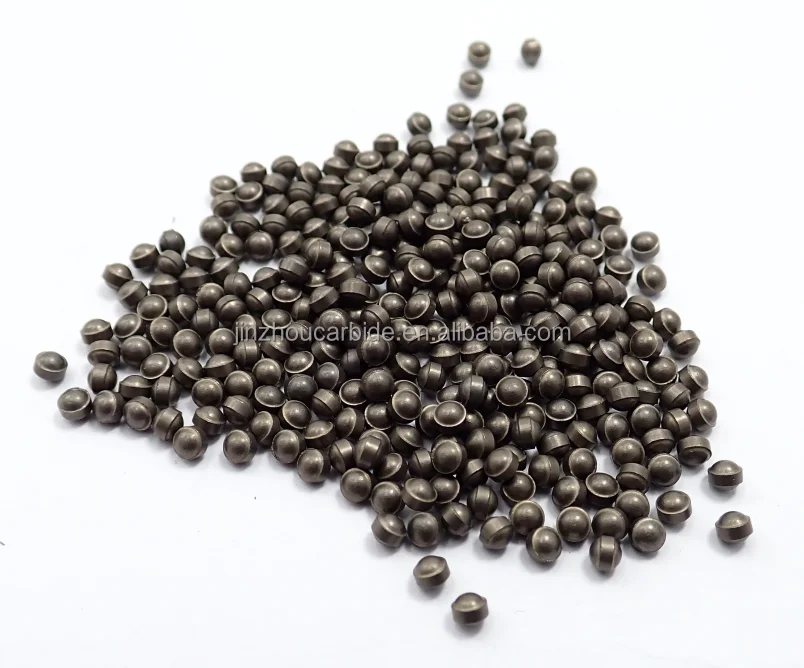

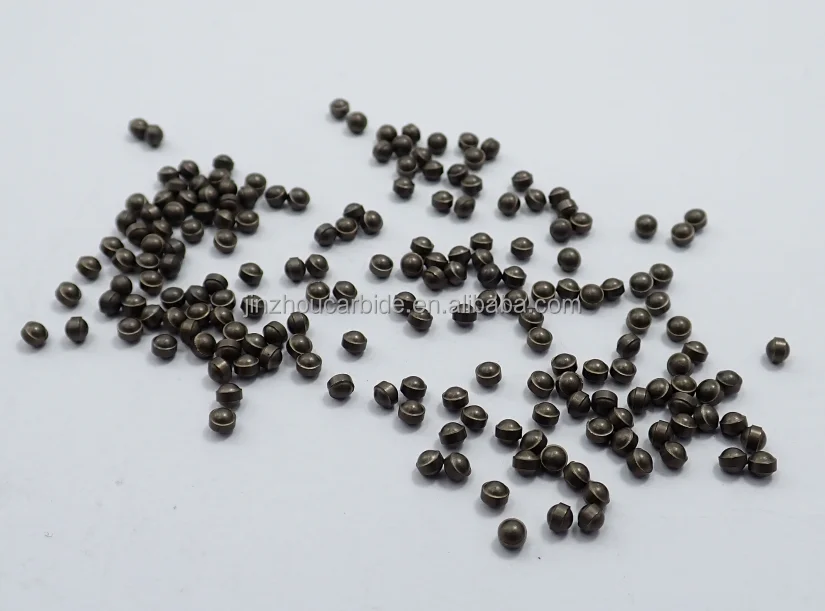

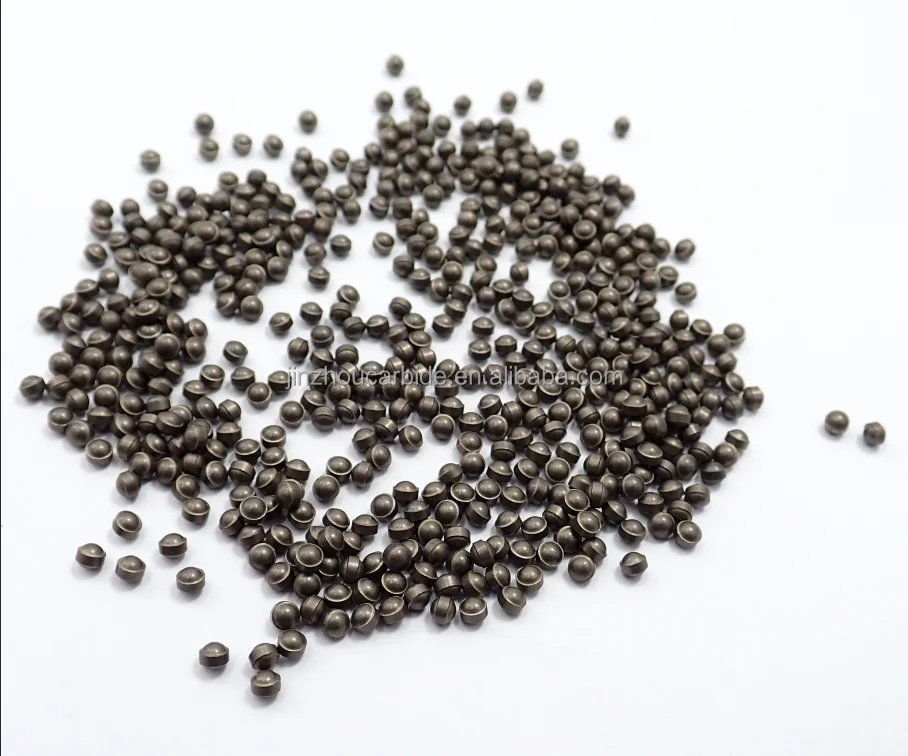

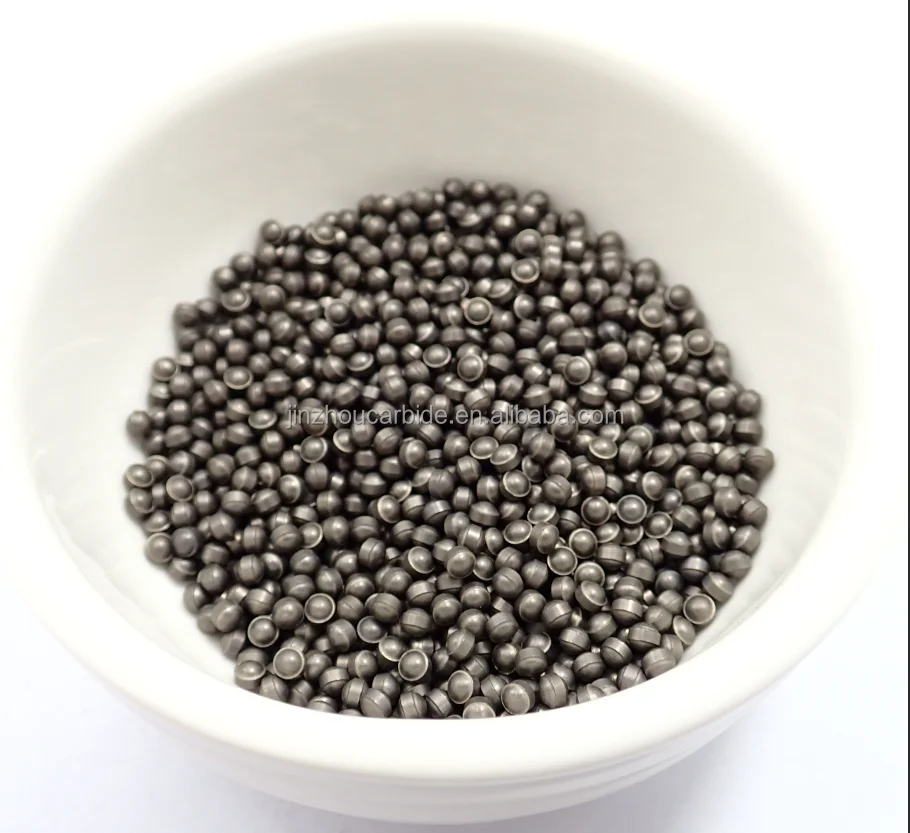

Sintered Tungsten Carbide Ball Blank With/Without Belt

Sintered Tungsten Carbide balls, commonly known as tungsten steel balls, tungsten ball, high specific gravity alloy ball and other cemented carbide spherical products, have the characteristics of high hardness, high wear resistance, corrosion resistance, bending resistance etc. They can be used in harsh environments and can replace all steel ball products.

Application: precision parts punching and stretching, precision bearings, instruments, meters, pen making, spraying machines, water pumps, mechanical parts, sealing valves, brake pumps, punching holes, oil fields, hydrochloric acid laboratories, hardness testers, fishing gear, counterweights, decoration, finishing and other high-end industries.

What we can do?

* We have various ball molds with different diameters, and fine grinding balls with diameters from 0.3 to 60 mm can be produced.
* Sintered by vacuum integrated furnace or high-pressure sintering furnace, have a good performance, with 100% free of pores and sand holes.
* Blanks with rings and balls can be provided, with grinding tolerances of 0~+0.2 mm.
* Recommend suitable grades according to actual applications. Commonly used grades are: YG6, YG8, YG6X, YG13, YN6, YN9, YN12,YT5, YT15 etc.
* Can be roughly ground, polished, and fine ground.
* Non-standard sizes can be produced according to customer’s drawings and requirements.

Grade Information

Grade	CO Percent (%)	Other Percent (%)	Density (g/cm³)	Hardness (HRA)	T.R.S (MPa)	Performance
YG6	6	94%WC	14.9	90.5	2400	With high hardness,wear resistance, corrosion resistance,anti-bending. tungsten carbide ball is usedto replace steel ball, Especially YN6, containing Ni 2%,corrosion resistance is more excellent.
YG8	8	92%WC	14.8	89.5	2800
YG6X	6	94%WC	14.5	92.0	2300
YN6	6	92%WC+2%Ni	14	90.0	1400

Diameters of Polished Tungsten Carbide Balls

0.4	0.5	0.8	1	1.2	1.5	1.588	1.6
1.98	1.9844	2	2.38125	2.5	2.7781	3	3.175
3.5	3.969	4	4.5	4.7625	5	5.5526	5.963
6	6.35	6.5	6.747	7	7.144	7.5	7.938
8	8.5	9	9.5	9.525	10	10.319	10.5
11	11.1125	12	12.303	12.7	13	13.494	14
14.2875	15	15.081	15.875	16	17.4625	18	19
19.05	19.844	20	22.225	25	25.4	30	30.163
34.925	31.75	38	38.1	40	42.8625	45	50
50.8	53.963	60

Grinding Grades

G3	G5	G10	G15	G16	G24	G25	G48
G50	G100	G200	G300	G500	G1000	G2000	G3000

Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer. Our factory located in Zhuzhou City, Hunan, China. Welcome to visit our factory.

Q2: Can you provide free samples?
A2: For stocked items, we could provide few free samples for testing, but the extra shipping costs need to be charged, you can also use your own courier account if have. Samples will be sent to you by courier within 3 working days.
For no stock items, we have the MOQ requirement when ordering.

Q3: What is your MOQ?
A3: Different item has different MOQ, Pls consult with sales for the details.

Q4: What is terms of payment?
A4: Normally, When Payment value <=USD1000, we require 100% T/T prepaid before production. Otherwise, 50% T/T in advance, pay off the balance before shipping.

Q5: Do you offer OEM and ODM?
A5: Yes, we have rich experience in OEM and ODM. We can engrave logo and specifications on the products. In addition, we can also do custom printing on the packaging plastic box.

Q6: How to control the products quality?
A6: All products will be 100% tested before delivery, we will check the appearance, dimensions and performance to guarantee qualified products.

Q7:How to contact us?
A7: You can contact me by E-mail, Trademanager, Mobile, Whatsapp and so on.
