DG600-QNP Mini Tunnel Boring Machines Slurry Balance Micro Pipe Jacking Machinery for Sale Micro Tuneladora Tbm

No.1601090890490

规格

修改选择

Model Number: DG600-QNP

DG600-QNP

Power: 15kw

15kw

选择规格和数量

Model Number: DG600-QNP

DG600-QNP

Power: 15kw

起订量为 0。请再添加 0 件以继续。

15kw

小计

GET A QUOTE

下载

查看所有下载

Description

Key attributes

Core Components

PLC, Gearbox, Motor

Machinery Test Report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Brand Name

REALTOP

Place of Origin

Hunan, China

Weight

9000 kg

Dimension (L*W*H)

860*3800mm

Type

Slurry balance pipe jacking machine

Usage

Sewage, tunnel, coal mine etc

Pipe

Concrete,segamental,steel,HDPE,pipe jacking

Soil

clay, soil, silt, coal mine all ok

Torque

81KNM

Trenchless

Trenchless Pipe Jacking

Curve jacking

Yes, experienced

After-sales Service Provided

Engineers available to service machinery overseas

Job experiences

More than 20 units applied in Singapore

Packaging and delivery

Selling Units

Single item

Product descriptions from the supplier

Report abuse

Product Description

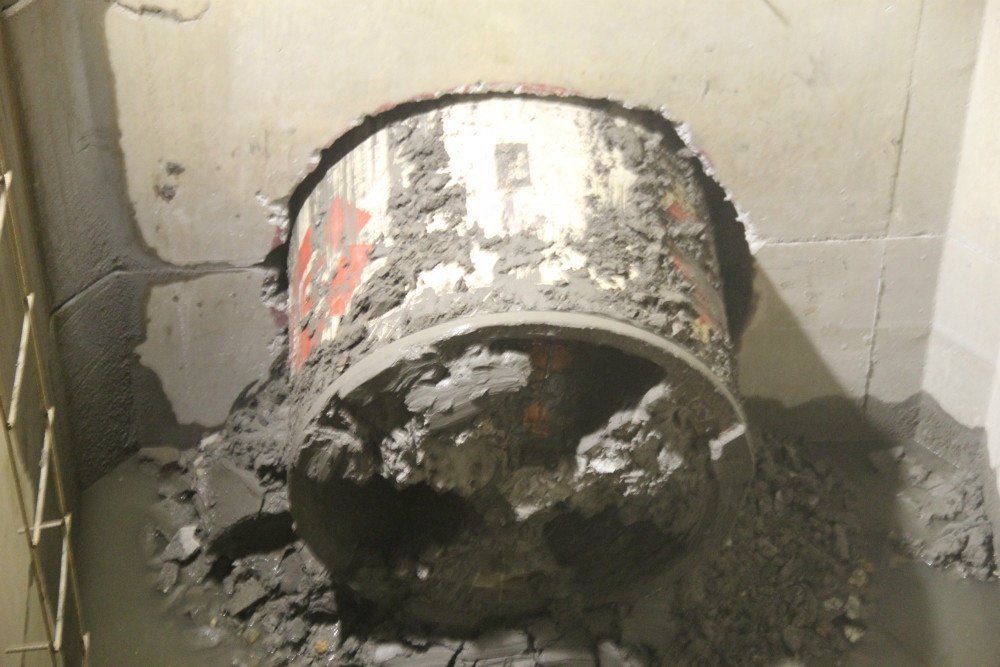

Product Application

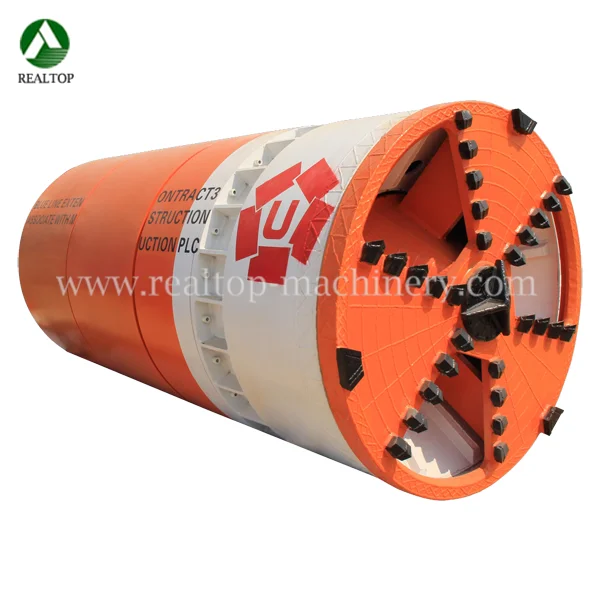

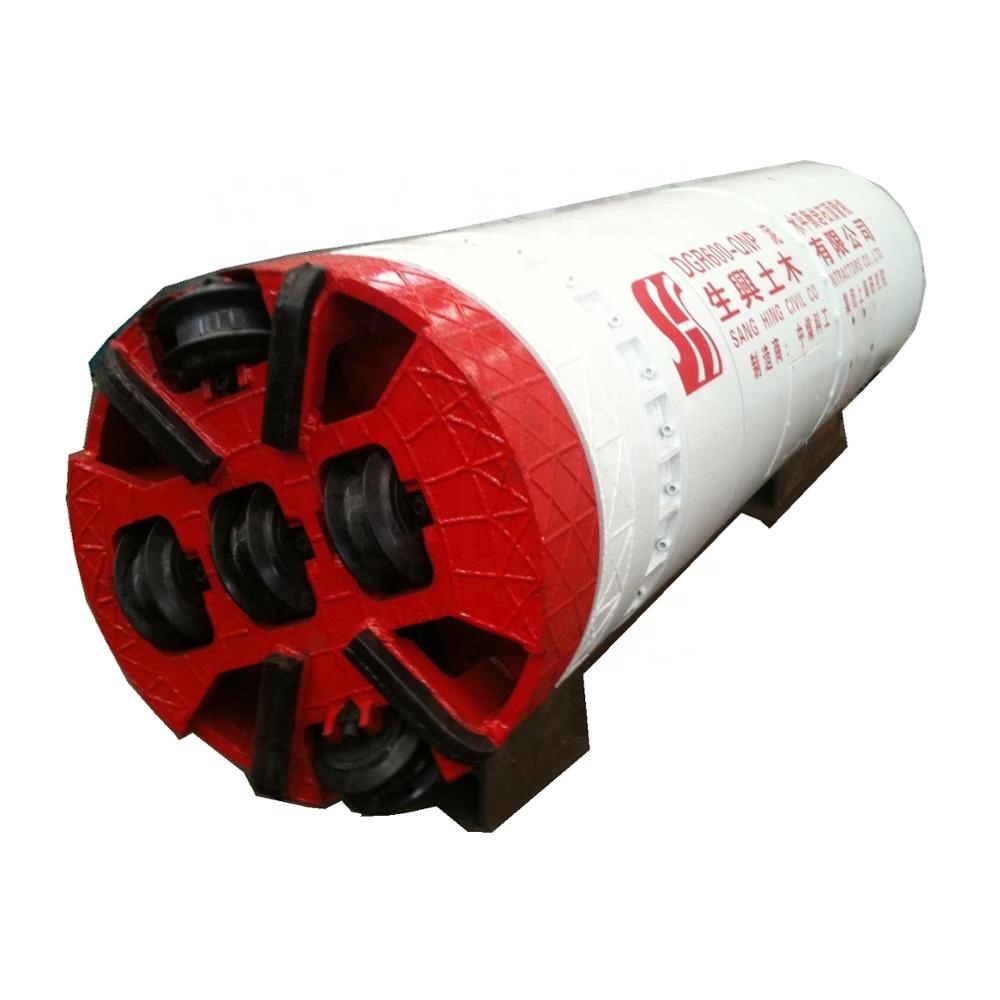

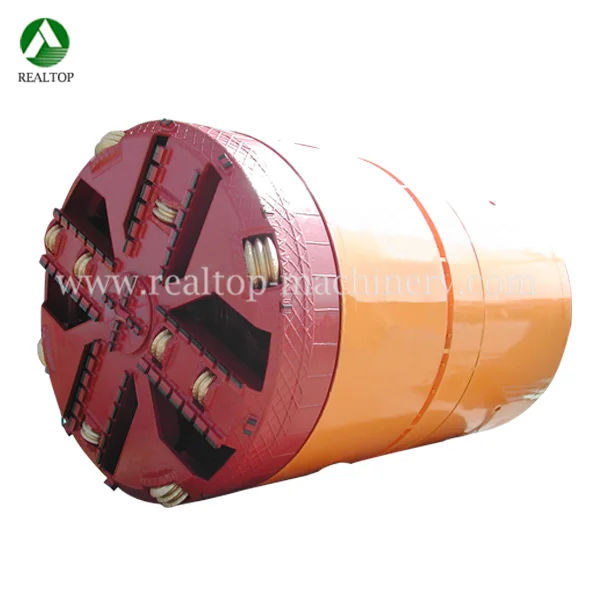

Pipe-Jack Machine.
Fit for trenchless underground pipe laying.
Easily control above ground, continuous work.
Fast speed safe! Dameter from 250-4000mm

1. Appliation scope:
For trechless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....
2. Specifications:
-3.1 Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
-3.2 It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
-3.3 With independence water and slurry injection system and washing clean device for cutter in particular, fit for big N value hard soil.
-3.4 Jackng speed is very fast, thoery max, speed is 120mm per min.
-3.5 Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.

-3.6 jacking distance can be long.
-3.7 Adopt ground operation system, safe, intuition and convenient!

-3.8 More than 20 units in Singapore.ng tunnel.

Models& Parameters		DG600-QNP
Dimention	Inner diameter (mm)	600
	Outer diameter (mm)	780
	Total Length (mm)	3800
Main drive	Rated Power (kW)	18.5
	Max. torque (kN·m)	29
	Revolution (r/min)	6.14
Steering	Steering cylinders	4
	Force per cyl. / oil pressure (kN)	375
	Stroke per cyl. (mm)	35
	Steering angle (°)	±2
Inside hydraulic	Rated power (kW)	1.1
system	working pressure (MPa)	25
Slurry system	Rated Power of Water Supply Pump (kW)	18.5
	Rated Power of slurry-out Pump (kW)	30
	Side-Slurry line diam.	80
Main Jacking system	Rated Jacking Speed mm/min	0--100

Main Features

Fit for trenchless underground pipe laying.
Easily control above ground, continuous work underground.
Fast speed safe! Diameter from 250-3000mm.

Certifications

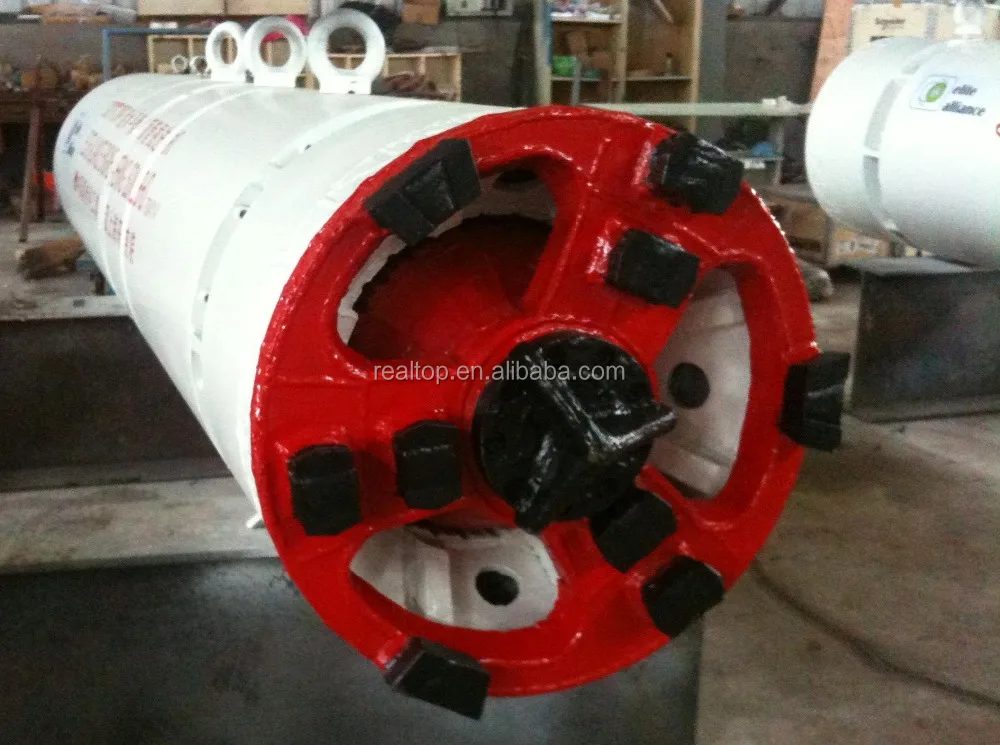

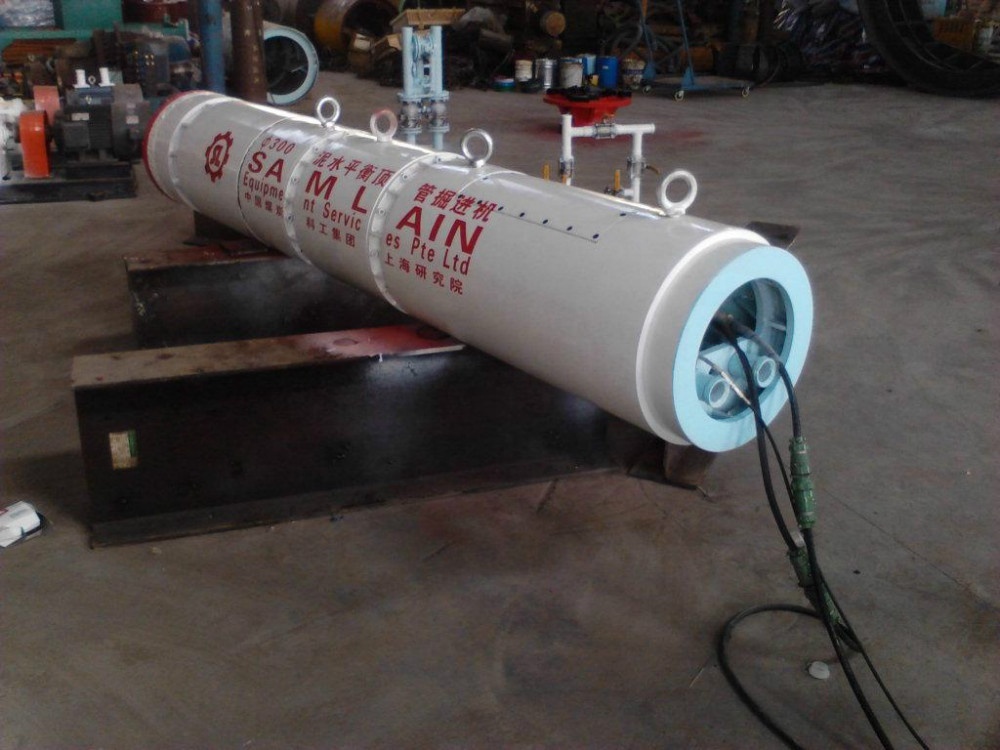

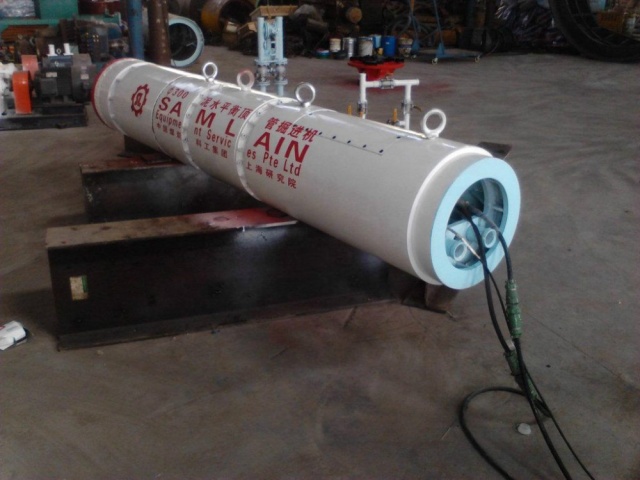

Detailed Images

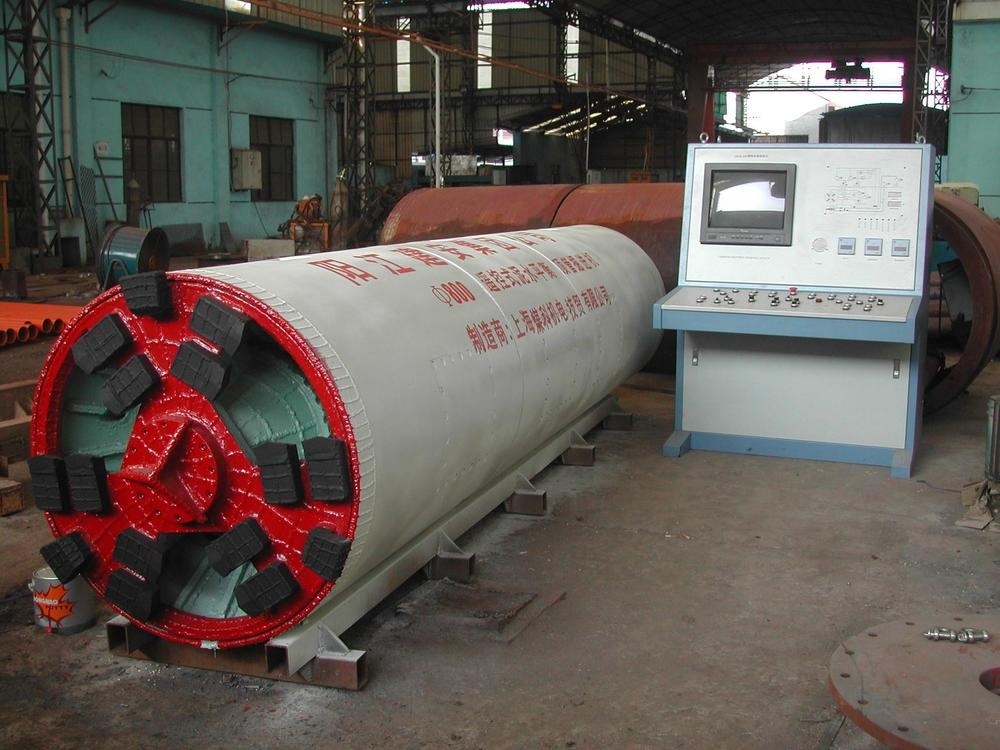

Main operation station.

Pipe jacking monitoring system.

Main jacking pump.

Main cylinder.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* We will send professional technicist to project site to operate the machine and train operators for the first section of the project, usually 100m/150/200m etc. (free of charge)

* Longer distance service is available in charge.

Information needed for quotation accordingly:

1. Project total length, distance for one section, how many sections will be built?
2. Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3. Projects information: for water supply, sewage project?

4. Underground water level.
5. Soil type? sol report is needed.

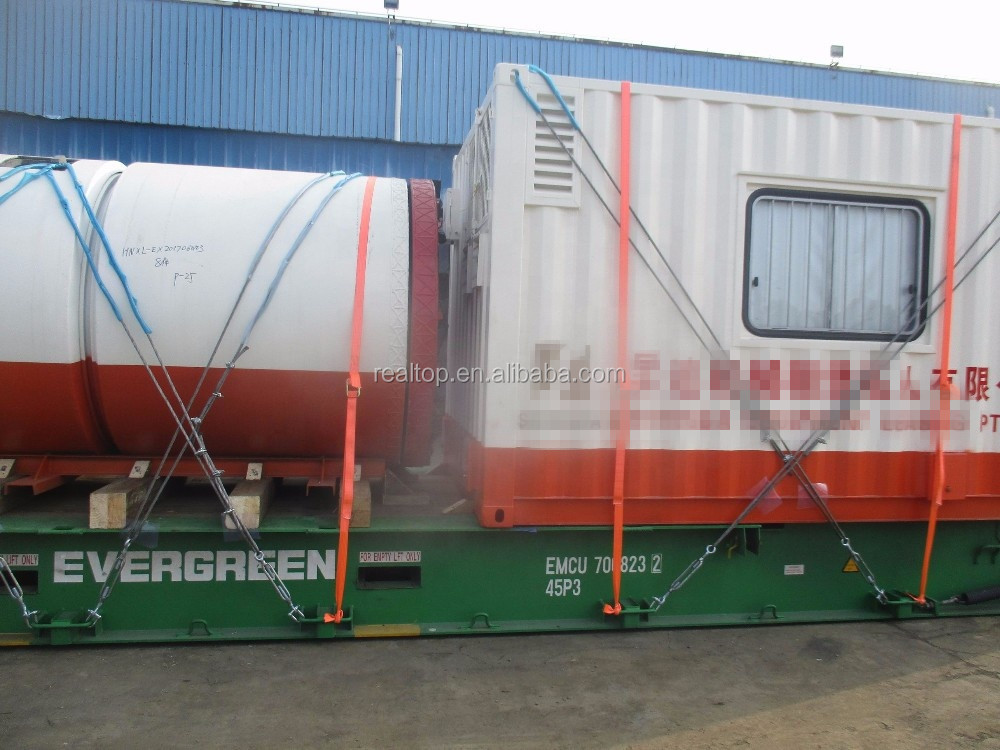

Packing & Delivery

Packaging
Size	860 * 3800 mm + parts
Weight	9T ~ 19T
Packaging Details	Normally delivery by FR, or small size pipe jacking machine will be delivery by normal containers.
